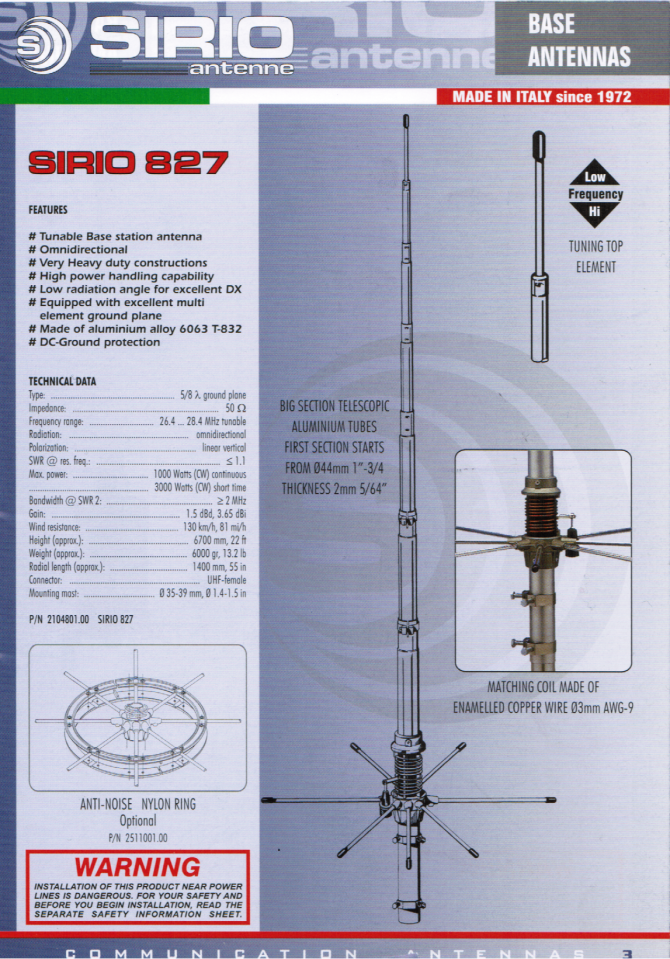

Antenna Sirio 827 + reinforcing ring

Code: 902.2415

Price: 170.00 € (VAT included)

 Prices can be changed with no previous communication.

Antenna 5/8 for base station, made of Aluminum tube with Magnesium and Silicon connection. The radiating element is of large diameter to obtain maximum robustness and to increase its bandwidth. The ground plane is formed by 8 radials achieving a perfect uniformity of radiation. The coil is constructed of cooper wire largely ideal to withstand high powers. Sirio 827 does not require any adjustment, because it is already preset manufacturing, although it is thus possible, through the Stub, modify its original setting.

Specifications:

- 5/8 WAVE

- 50 OHMS

- 26/29 MHz

- VERTICAL - POLARIZATION

- SWR < 1.1:1 (Stationary waves relationship)

- 1000 W maximum power

- Passing band: 2.5 MHz (Band Width)

- 7.5 dB gain

- PL-259 - connection to the coaxial cable

- 6.85 m length

- 30-38 mm mast diameter

___________________________________________________________________

 Prices can be changed with no previous communication.

The most modern and advanced technology.

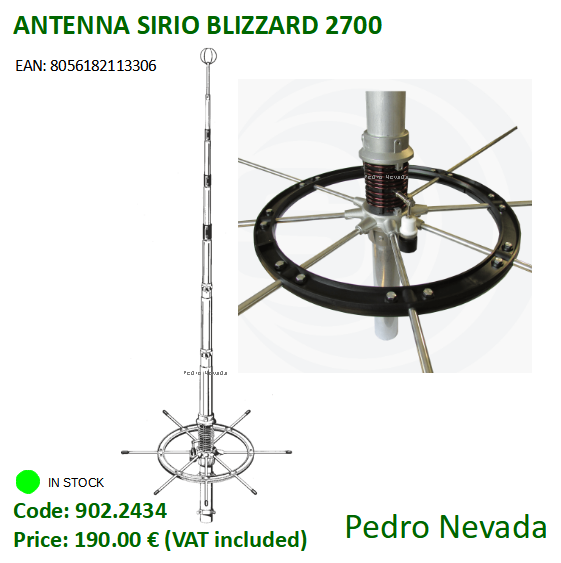

Instruments were used to create the Sirio Blizzard 2700 antenna, the new CB base antenna with remarkable features.

The coil, made of large-section enamelled copper wire, has been specially designed to have high performance. It adopts the exclusive CACS (Automatic Coil Cooling System) that allows self-cooling by means of a flexible support that keeps the coil suspended, allowing air circulation.

It is an ideal antenna for installation on rooftops.

Specifications:

- Type: 5/8 λ

- Frequencies: 26 to 28 MHz

- Impedance: 50 Ω

- Radiation: 360º omni-directional

- Polarization: linear vertical

- Gain: 1.5 dBd, 3.65 dBi

- Bandwidth: ≥ 2000 kHz

- SWR: ≤ 1.1

- Maximum power: 1000 W (CW) continuous / 3000 W (CW) short duration

- Plug: UHF female

- Materials: aluminum, steel, copper and nylon

- Wind resistance: up to 130 km/h

- Length: ≈ 6700 mm

- Weight: ≈ 6000 g

- Radial length: 1400 mm

- Mounting mast: Ø 35 to 39 mm

This antenna contains:

- Cable ties to secure the track

EAN: 8056182116451

Code: 902.2432

Price: 129.00 € (VAT included)

Prices can be changed with no previous communication.

Id-490_13-03-2024_web.pdf (sirioantenne.it)

EAN: 8056182116451

Code: 902.2432

Price: 129.00 € (VAT included)

Prices can be changed with no previous communication.

Id-490_13-03-2024_web.pdf (sirioantenne.it)

 Prices can be changed with no previous communication.

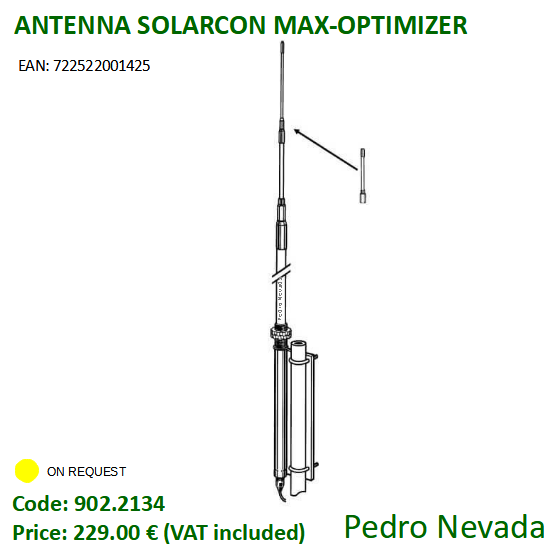

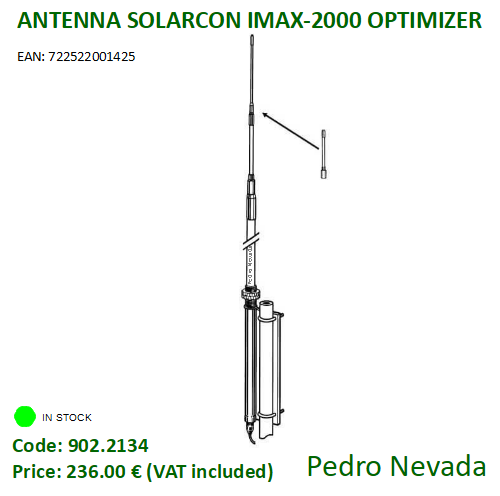

With the antenna Solarcon Max-Optimizer, you can choose between a balanced antenna from 10 to 11 meters that will work well in both bands or optimize it for the 11-meter band.

Improve the performance of your Solarcon Max-Optimizer antenna by adding the optional Solarcon IMAX-GPK radial kit.

To optimize performance at 11 meters, mount the 12" optimizer between the middle and top antenna section as a 4-piece antenna. For balanced performance at 10 to 11 meters, omit the 12" optimizer section and mount as a 3-piece antenna.

General Specifications:

- Maximum power: 5000 W

- Frequency: 26 to 33.5 MHz, using tuning rings and cutting the upper section; approximately twice the 2:1 SWR bandwidth of the Solarcon A-99 and MAX-2000 antennas (3 MHz with SWR < 2:1).

- Gain: 1 to 2 dB, higher than any 5/8 λ (wavelength) antenna.

- Mounting system provides easy one-piece installation.

- The long bushings make the antenna mechanically strong.

- The antenna is supplied in 3 to 4 sections.

- The antenna meets or exceeds CPSC electrical shock hazard standards.

- Add the Solarcon IMAX-GPK radial kit to improve its performance.

 Prices can be changed with no previous communication.

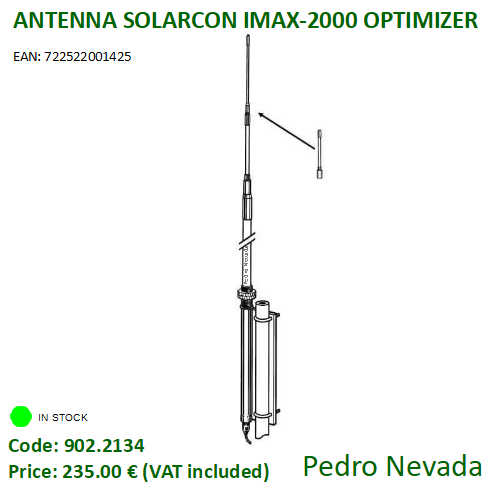

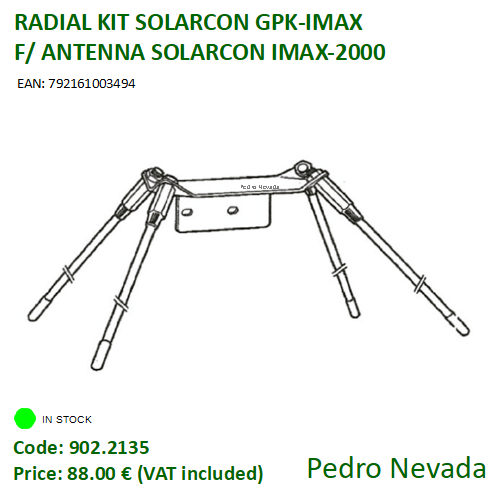

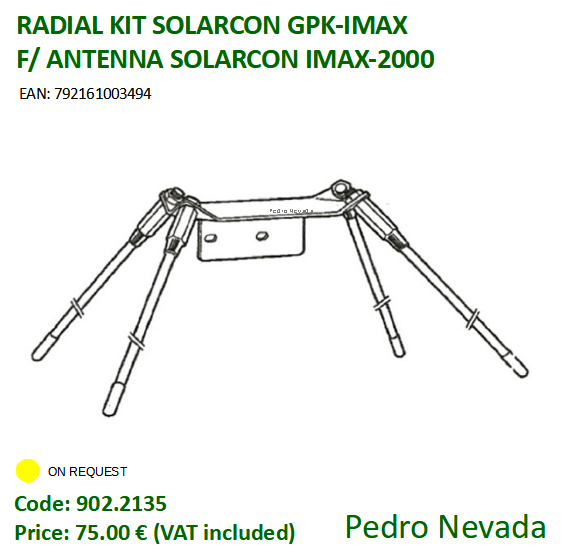

It reduces radiation angle for greater range. It comes with mounting bracket, featuring four 182 cm fiberglass radials.

Improve your Solarcon IMAX-2000 antenna's performance by adding the optional Solarcon GPK-IMAX radial kit.

Packaging:

- Unit packaging: 245 x 11 x 5 cm = 4 kg

- Master carton: 245 x 24 x 17 cm = 25 kg (6 units)

 Prices can be changed with no previous communication.

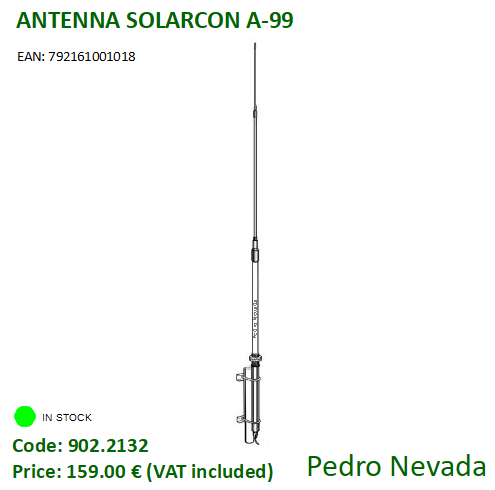

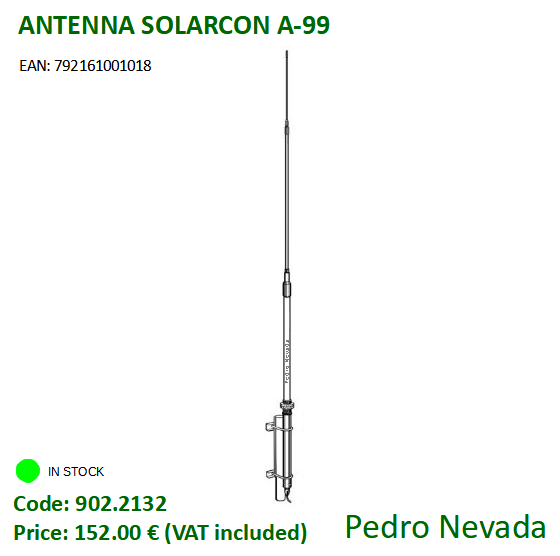

Specifications:

- CB base antenna

- Material: fiberglass

- Maximum power: 2000 W

- Connector UHF-female

- It works from 10 to 17 m with turner.

- It covers well above and below traditional CB channels.

- Solarcon A-99 is a half-wave variable mutual transductance tuned antenna.

- It comes in three sections, easy to mount.

- Gain: 9.9 dBi

- Lightning protected, DC grounded. No lightning rod or static discharge unit is required.

- Length: 5.5 m (three sections)

- Weight: 2.27 kg

- SWR: 1.5:1

- Add GPK-1 radial kit for a better performance

 Prices can be changed with no previous communication.

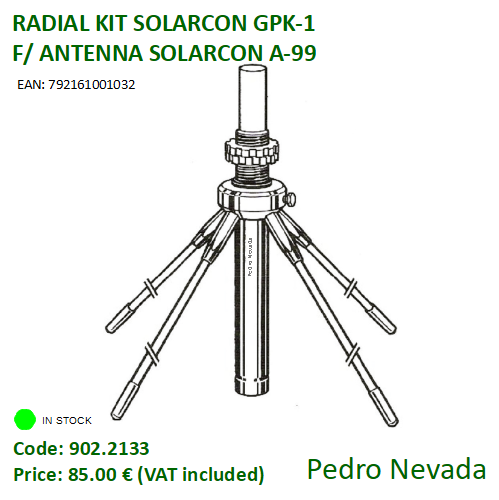

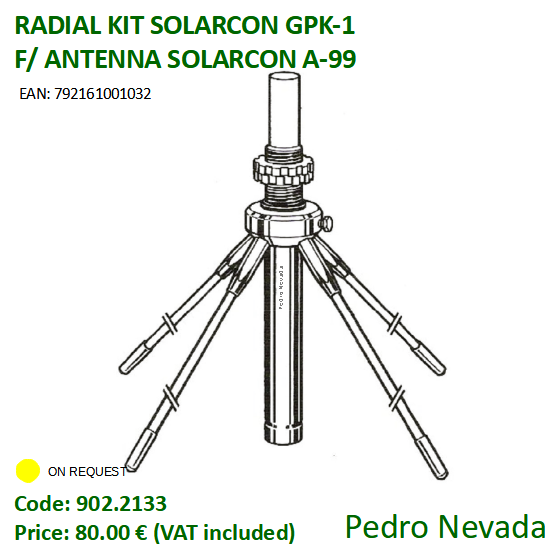

It reduces radiation angles for greater range.

It incorporates a slider in the neck, for 182-cm fiberglass radials.

Enhance the your Solarcon A-99 antenna's performance by adding the optional GPK-1 radial kit.

Specifications:

- Fiberglass material

- Length: 1.80 m

- 1 aluminum clamp

- 4 radials

Packaging:

- Unit packaging: 183 x 7 x 5 cm = 1.28 kg

- Master carton: 191 x 24 x 17 cm = 12.6 kg (9 units)

 Prices can be changed with no previous communication.

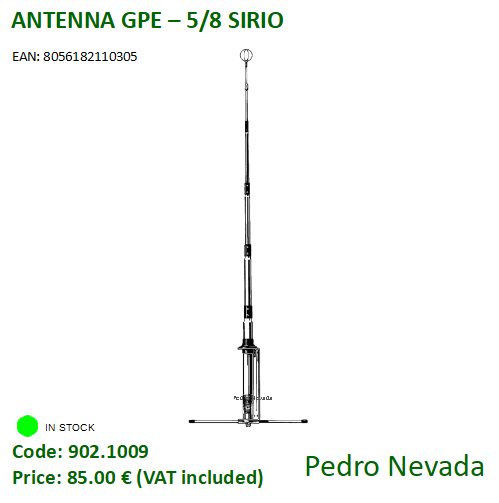

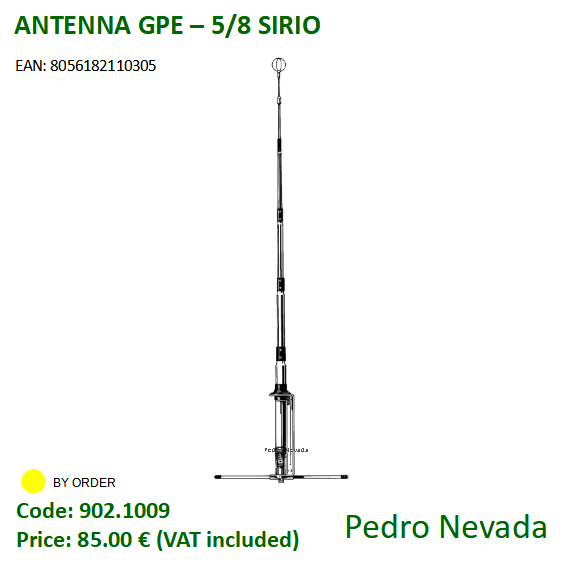

Specifications:

- Wave type: 5/8 λ

- Frequency: 26.4 - 29.0 MHz

- Impedance: 50 Ω

- Radiation: 360º omnidirectional

- Vertical polarization

- Gain: 1.2 dBd, 3.35 dBd

- Band width: 1600 kHz

- SWR: ≤ 1.3

- Maximum power: 250 W (CW) continuous

- Connector: UHF-female

___________________________________________________________________

 Prices can be changed with no previous communication.

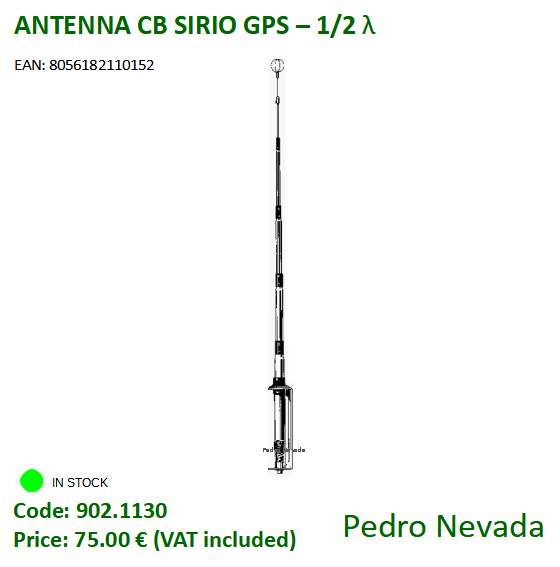

Specifications:

- Frequency: 26.4 to 29.0 MHz

- Gain: 0 dBd, 2.15 dBi

- Maximum power: 250 W continuous, 750 W short time

- UHF female connector

- Height: ≈ 59.5 m

- Weight: ≈ 2.5 kg

- Mounting mast: Ø 35 to 42 mm

   ___________________________________________________________________

 Prices can be changed with no previous communication.

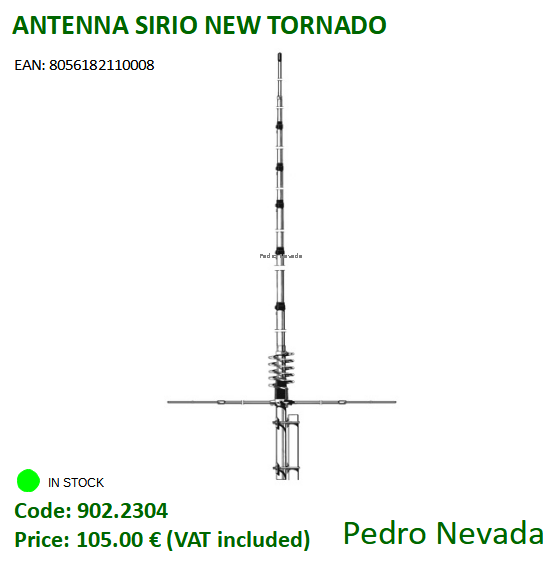

Specifications:

- Type: 5/8 λ

- Frequency: 27 to 30 MHz

- Impedance: 50 Ω

- Omnidirectional antenna

- Linear vertical polarization

- Gain: 3.35 dBi

- Band width: 1300 kHz

- SWR: ≤ 1.2

- Maximum power: 1000 W

- UHF PL female plug

- Wind load: 130 km/h

- Height: ≈ 7.23 m

- Weight: ≈ 2.9 kg

- Mounting on the mast: Ø 35 - 42 mm

___________________________________________________________________

 Prices can be changed with no previous communication.

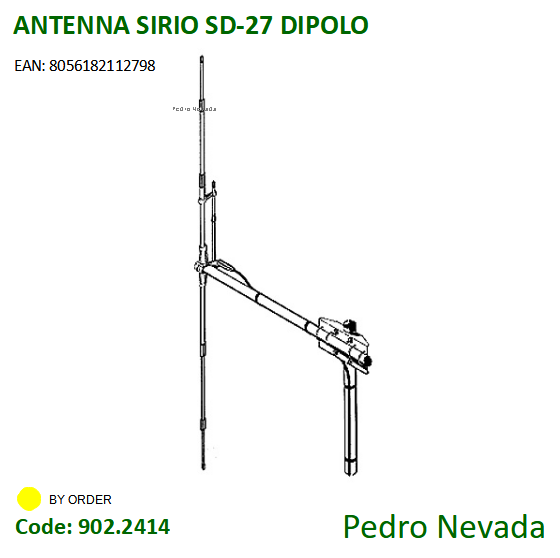

Specifications:

- Type: dipolo

- Frequency: 26.5 to 30 MHz

- Impedance: 50 Ω

- Horizontal radiation: directional

- Vertical radiation: omnidirectional

- Polarization: linear horizontal or vertical

- Gain: 2.15 dBi

- Band width @ SWR ≤ 2: ≥ 3500 kHz @ 26.5 MHz

- SWR @ res. freq.: ≤ 1.1

- Maximum power: 1000 W in CW; 3000 W (CW) short time

- Feed system / position: Gamma match / center

- UHF female plug

- Materials: aluminum, zamak, galvanized steel

- Wind resistance: 80 N @ 150 km/h / 130 km/h

- Wind surface: 0,07 m²

- Length: ≈ 558.2 cm @ 26.5 MHz

- Turning radius: ≈ 3.2 m forn horizontal polarization

- Weight: ≈ 2.56 kg

- Mounting mast: Ø 35 - 50 mm

___________________________________________________________________

 Prices can be changed with no previous communication.

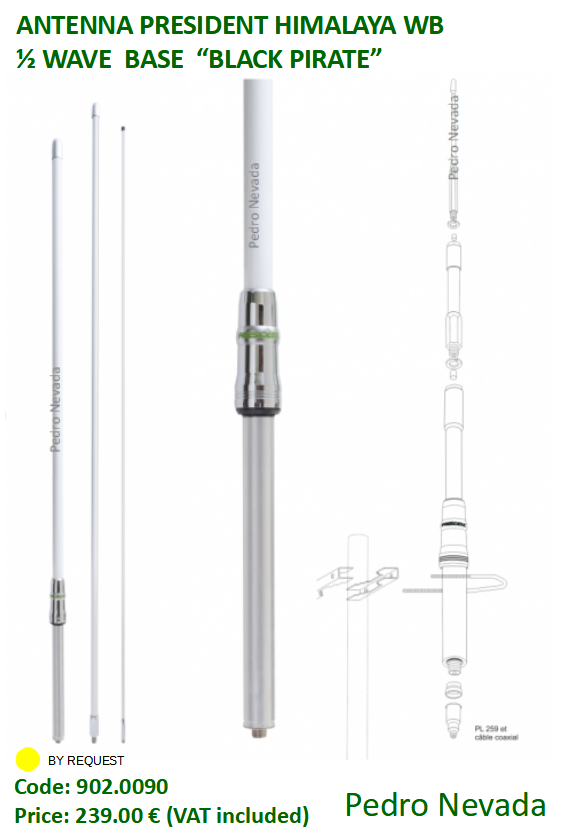

Specifications:

- Wave type: 1/2 λ

- Fiber/graphite rod

- SWR: 1.15/1

- Gain: +8 dBi

- Maximum power: 2000 W (P.E.P.)

- Band width: 8000 kHz (800 channels)

- Length: 527 cm

- Weight: 2000 g

___________________________________________________________________
